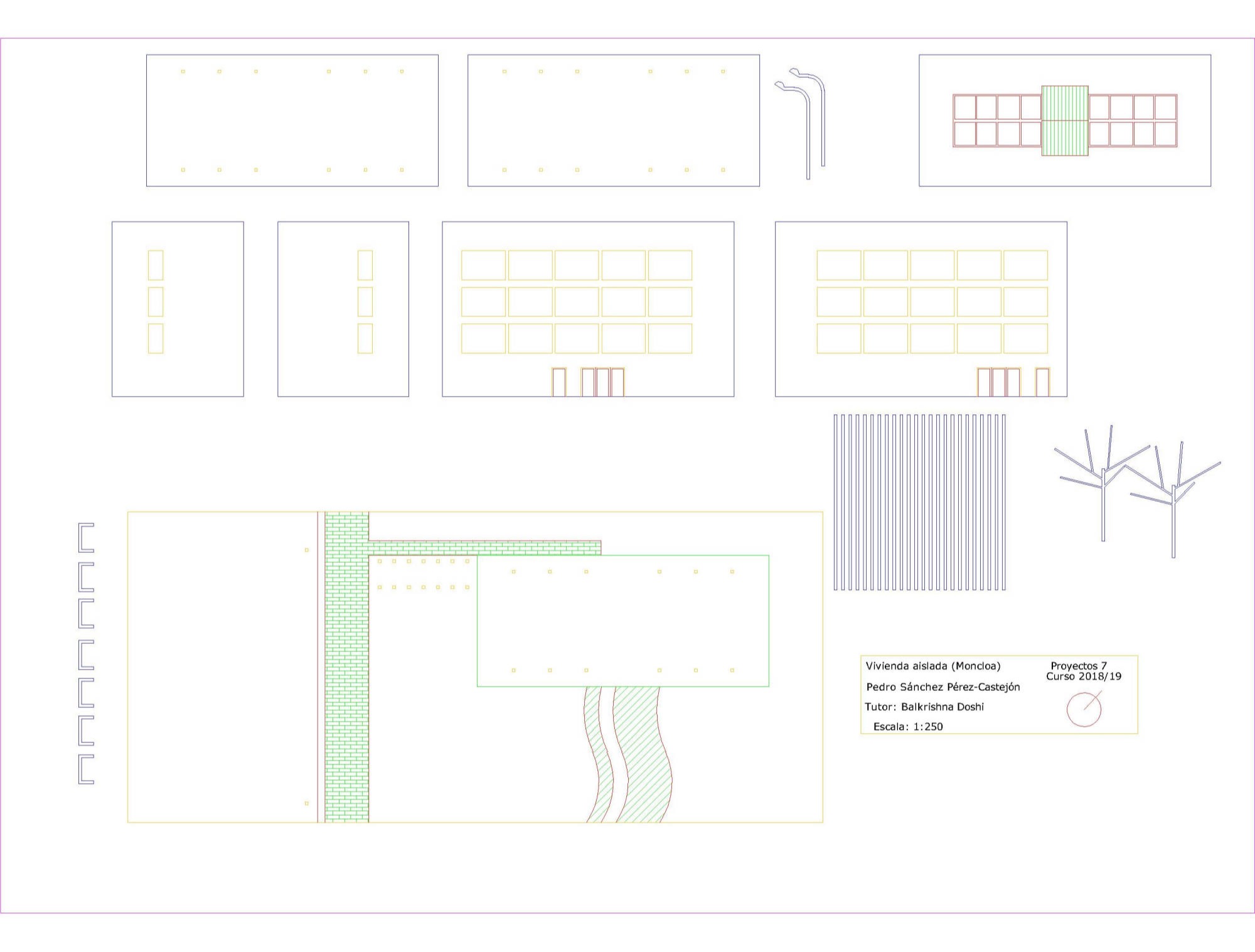

1.- INITIAL DRAWING TO BE MADE.

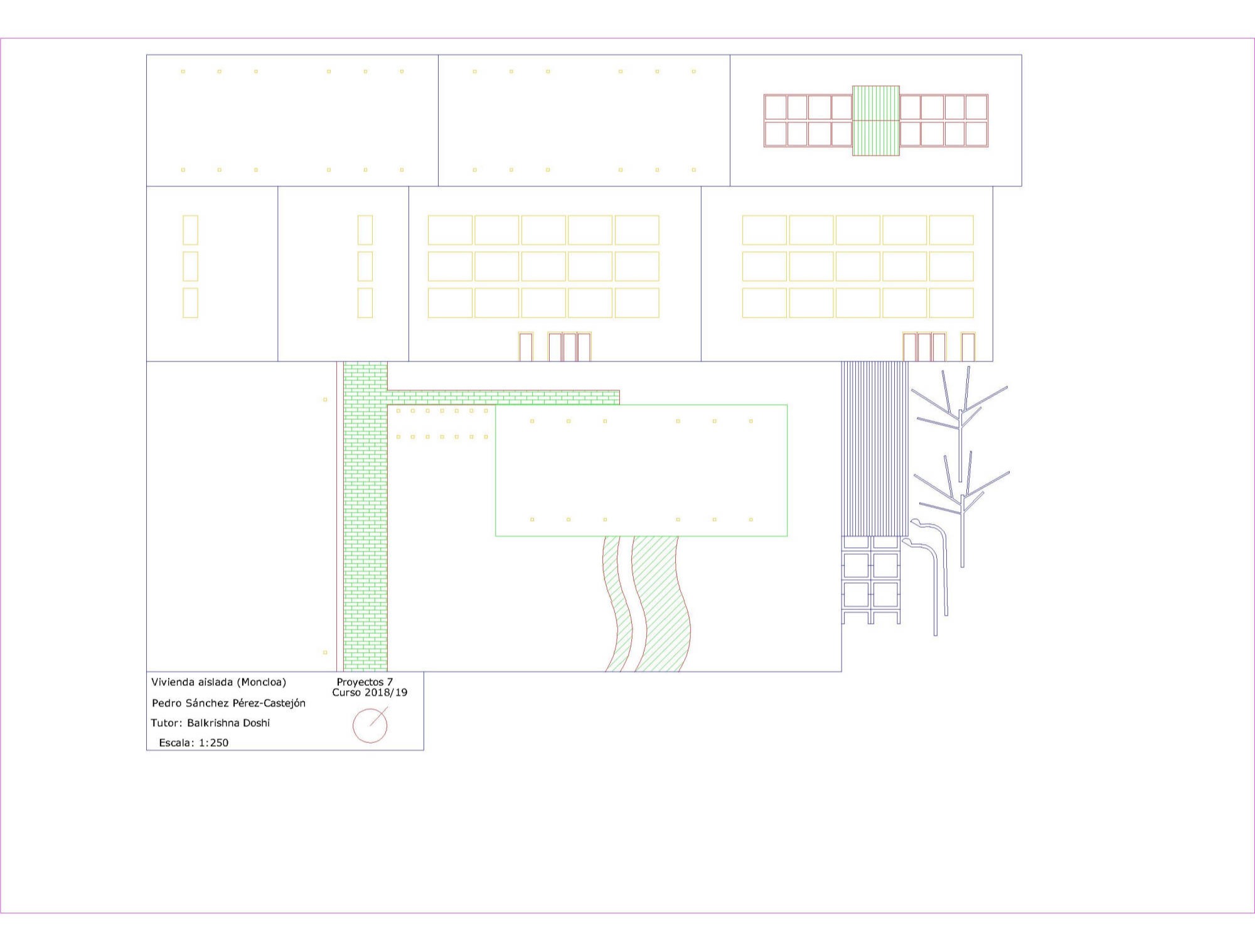

2.- THE DRAWINGS ARE BADLY DISTRIBUTED, IN ORDER TO MAKE THE MOST OF THE MATERIAL AND SAVE MACHINE TIME.

3.- IT IS NECESSARY TO JOIN AND GLUE THE PIECES THAT CAN BE JOINED.

4.- IT IS NECESSARY TO CHECK THAT THERE IS NO BAD ASSEMBLY OF THE PIECES, SOMETIMES THEY ARE DISPLACED MICRONS AND THE WORK CAN GO WRONG.

5.- USE THE COMMAND, DECOMP, TO BE ABLE TO EASILY ELIMINATE SUPERIMPOSED LINES AND UNGROUP ELEMENTS.

6.- USE THE OVERKILL COMMAND.

7.- USE THE CLEAN OR PURGE COMMAND, TO REMOVE WHAT IS NOT NECESSARY. REVIEW THE FILE, TO CHECK IF EVERYTHING IS CORRECT (NO OVERLAYS, OVERLAPPING LINES, STRANGE LAYERS, ETC.).

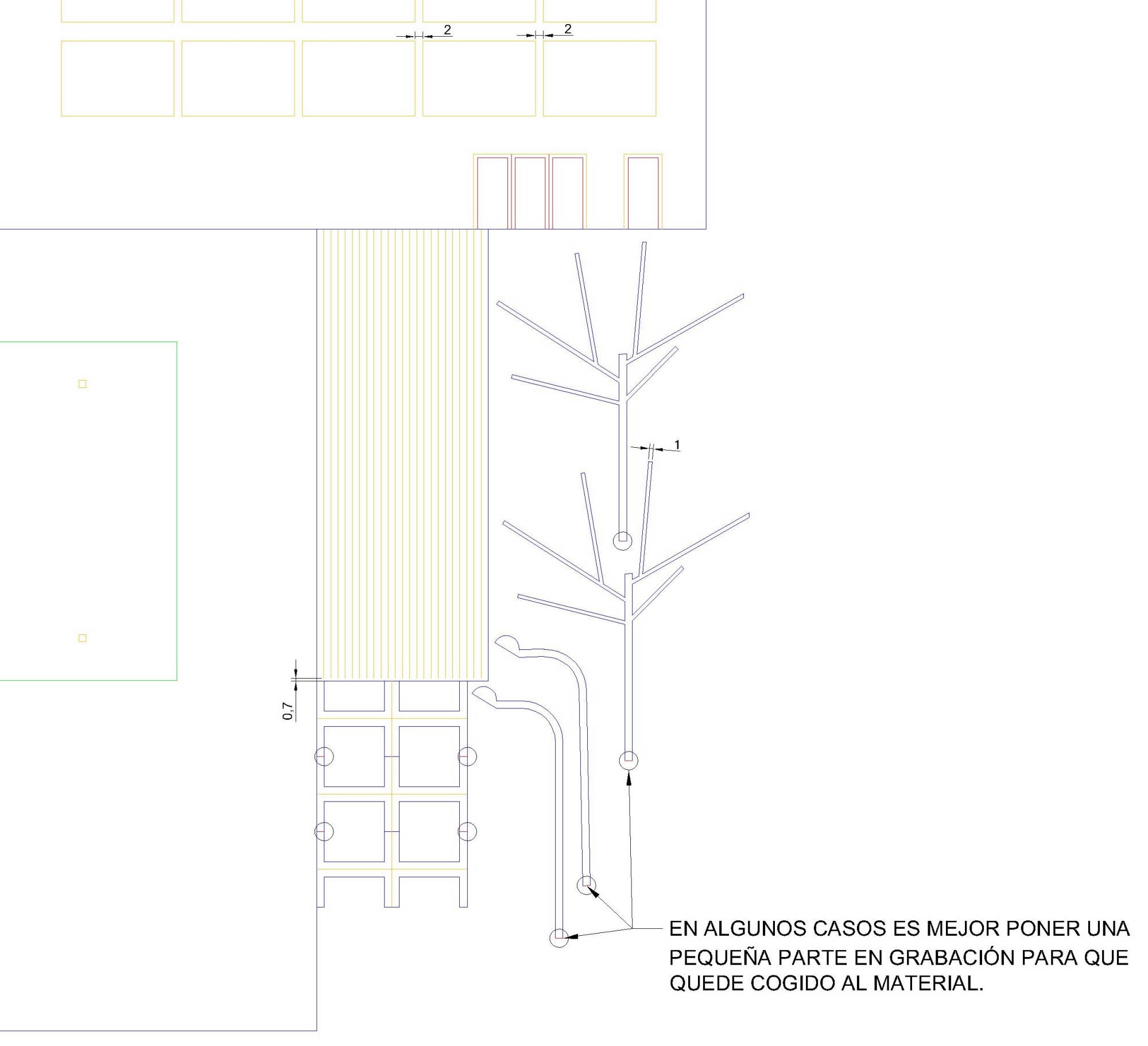

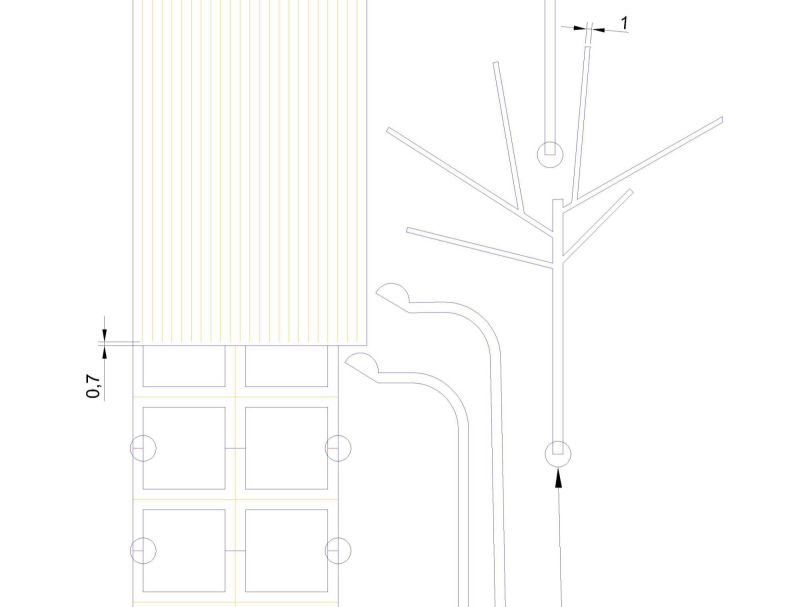

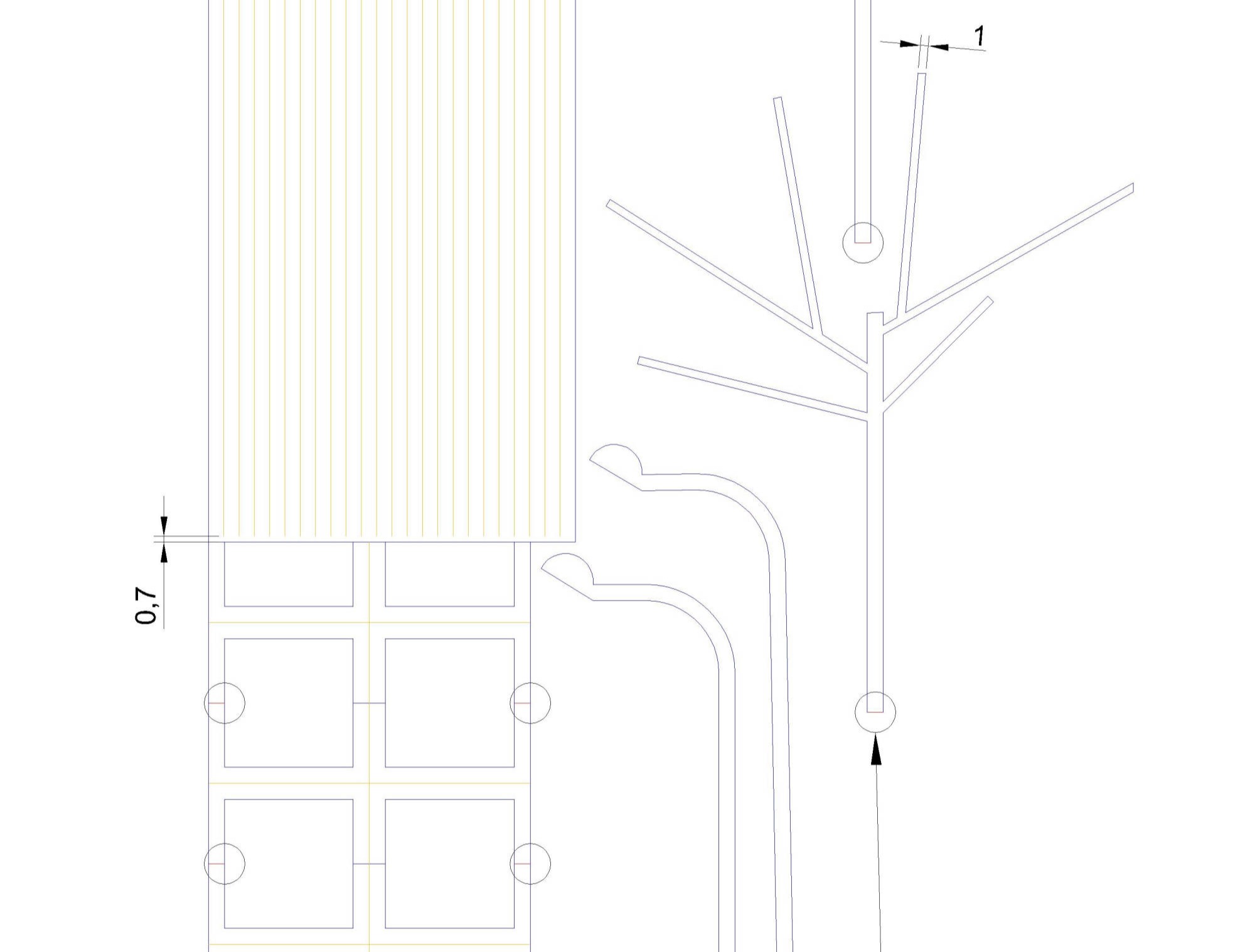

8.- TO BE ABLE TO RECOVER THE PIECES BETTER, TO HAVE THEM GROUPED AND TO AVOID THAT THEY SLIP THROUGH THE GRID. A LINE OFFSET IS MADE. USE THE ORDER, EQDIST OR OFFSET, WITH A DISTANCE OF 0.7 MM.

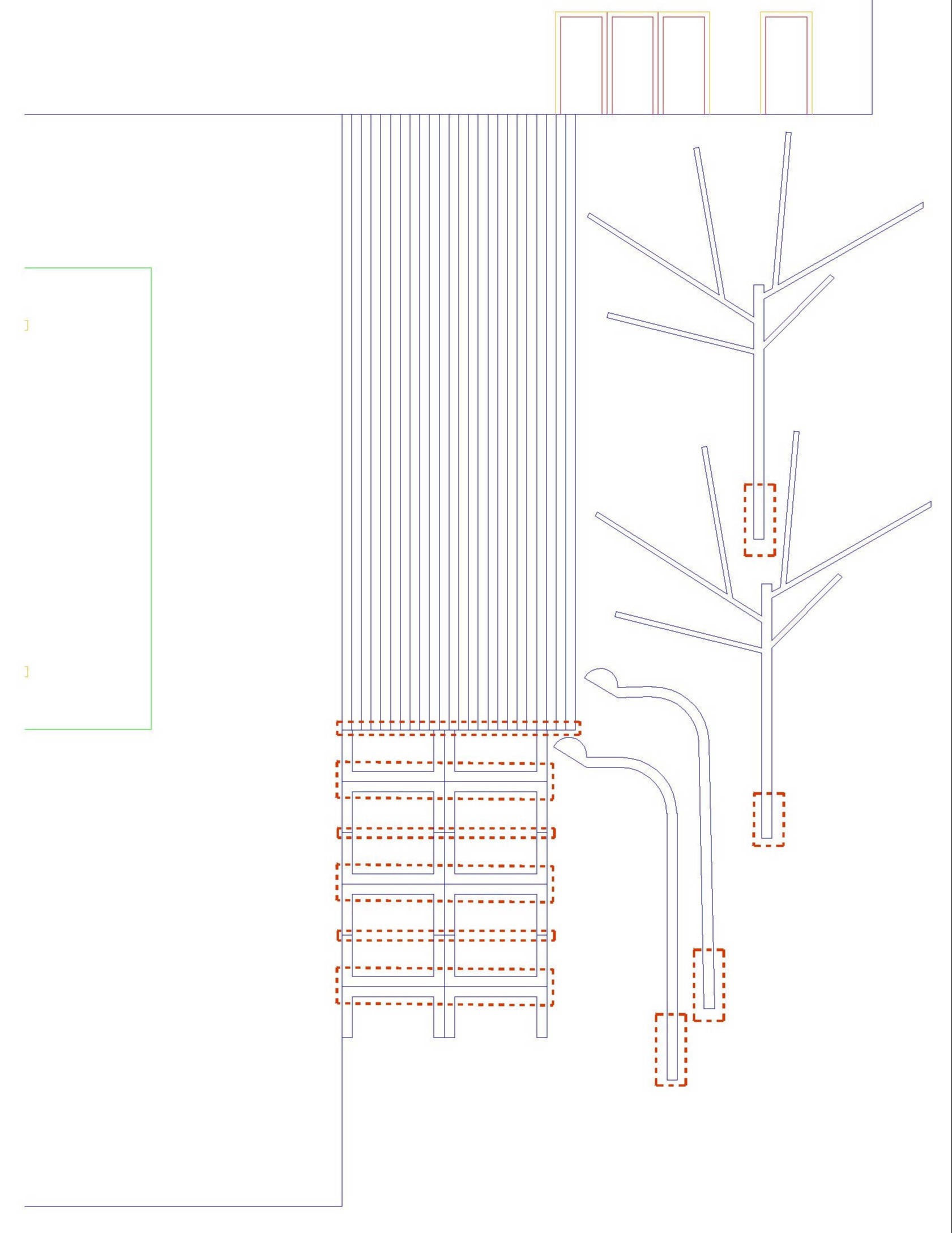

9.- THE LINES ARE TRIMMED IN THE CORRESPONDING PART AND THE AUXILIARY LINES ARE ERASED.

10.- THE ENGRAVING LINES ARE CONVERTED TO INNER CUT IF NECESSARY.

11.- AS FOR THE BOX, THE TYPOGRAPHY SHALL BE IN THE TEXT LAYER.
